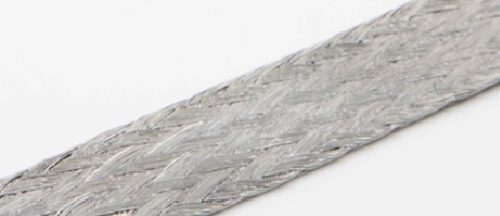

Aluminium braid

Design, Qualification and Production are our offer for success in creating electrical connections.

APPLICATIONS

  • Installations where the electrical connection requires dynamic and flexible characteristics.
  • Installations with strong vibrations.
  • Electric engine, starters.
  • Equipotential links.
  • Grounding.

MAIN FEATURES

  • From 6 to 400 mm²
  • Aluminum wire according to EN 1715-2 : 1370
  • Temper : R16 (> 160 N / mm²)
  • Maximum electrical resistivity at 20 ° C : 2.801 μΩ.cm
  • Conductivity : 61.5% IACS
  • Operating temperature : -50 ° C to + 100 °
  • Short temperature withstand : 150 ° C

Packaging

  • DIN 200
  • AL SPOOL
